XLamp® XD16 Premium White LEDs: Improved Optical Performance
XLamp® XD16 is Cree LED’s newest Extreme Density LED, delivering up to 5½ times higher lumen density than Cree LED’s previous generation of high-power LEDs. The ceramic based XD16 LED package addresses challenges with luminaire manufacturing, thermal design, optical design and reliability that…
Published by LED professional ·
XD16 LEDs are available in two versions: Standard and Premium White. The Standard version is optimized for tightly-packed arrays of multiple LEDs. The Premium White version upgrades the optical profile of the LED adding superior performance with secondary optics and reduced between-LED cross talk. XLamp XD16 LEDs are optimized for all lighting applications that require extreme levels of lumen density, including indoor directional, portable and aftermarket automotive.
- Available in outdoor white and 70-, 80- and 90-CRI white
- ANSI-compatible chromaticity bins
- 3-step and 5-step ANSI bin options
- Binned at 85 °C
- Maximum drive current: 2 A
- Low thermal resistance: 1.8 °C/W
- Wide viewing angle: 120°
- Unlimited floor life at ≤ 30 ºC/85% RH
- Reflow solderable -JEDEC J-STD-020C
- UL® recognized component (E349212)

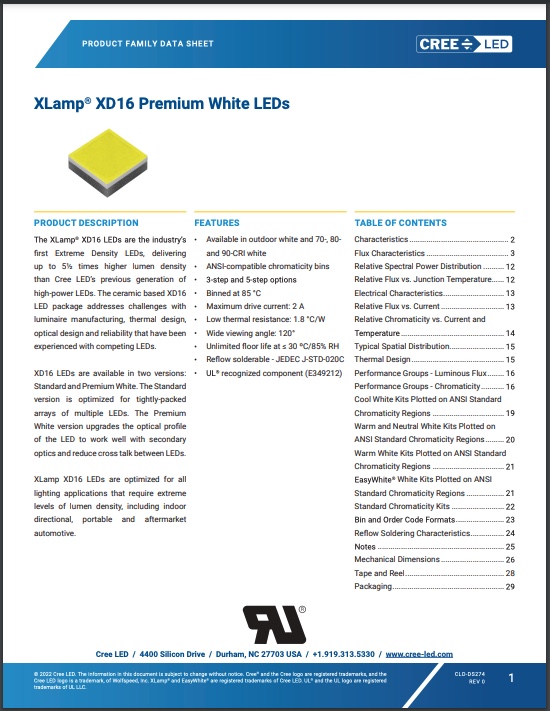

Download the XD16 Datasheet
Contact info:
Cree, Inc.4400 Silicon Drive, Durham, North Carolina 27703
Tel: +1 919-313-5330, US toll-free: 877-206-5657,
Outside the US: 1-919-313-5330
