Griven Introduces GRAPH-i-Spot LED Fixture
The new Graph-i-Spot by GRIVEN is about to set a new standard among its LED colour changer series. A super compact single 3W full-colour LED unit that looks like a cut stone and shines like a diamond, Graph-i-Spot is a fully weatherised IP65 powerful fixture.
A new solid state solution that can be easily assembled with other units of its kind in any shape to build a virtual LED screen on almost all surfaces.

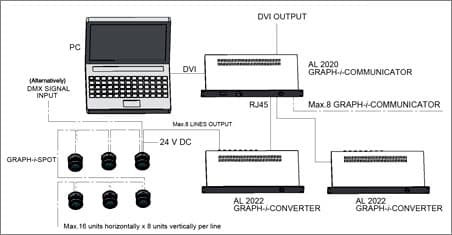

Graph-i-Spot can easily blend in any sort of indoor or outdoor environment and can be easily integrated with the existing architecture while shaping a brand new outstanding ambience. Graph-i-Spot can accept any graphic, video or still image coming from a DVI media server or DMX 512 signal and the configuration system can then store and trigger the show to a striking visual effect.
Professional lighting designers worldwide are clearly going to identify Graph-i-Spot as the new artistic medium for their eye catching display where light, colour and image converge to create the extraordinary.
TECHNICAL SPECIFICATIONS:
• Resolution 196 pixel/m2 (maximum)
• Pixel pitch 70 mm (minimum)
• Colours 1 billion (30 bit)
• Total Luminous flux 3 LED pixel (RGB) 78 lm
• Optics Clear glass / Frosted lens
• Control GRAPH-i-COMMUNICATOR AL2020
GRAPH-i-CONVERTER AL2022
• Input source DVI / DMX 512 protocol
• Input resolution 640x480 @ 60 Hz / 800x600 @ 60 Hz / 1024x768 @ 60 Hz
• Power consumption 4W
• Power input 100 ÷ 240 VAC, 50-60Hz
• Outdoor protection IP65
• Standards CE listed
• Operating limits -10°C ÷ 40°C
• Housing Aluminium
• Weight 400 gr
The advertising literature of this product can be downloaded at this link: Graph-i-Spot
