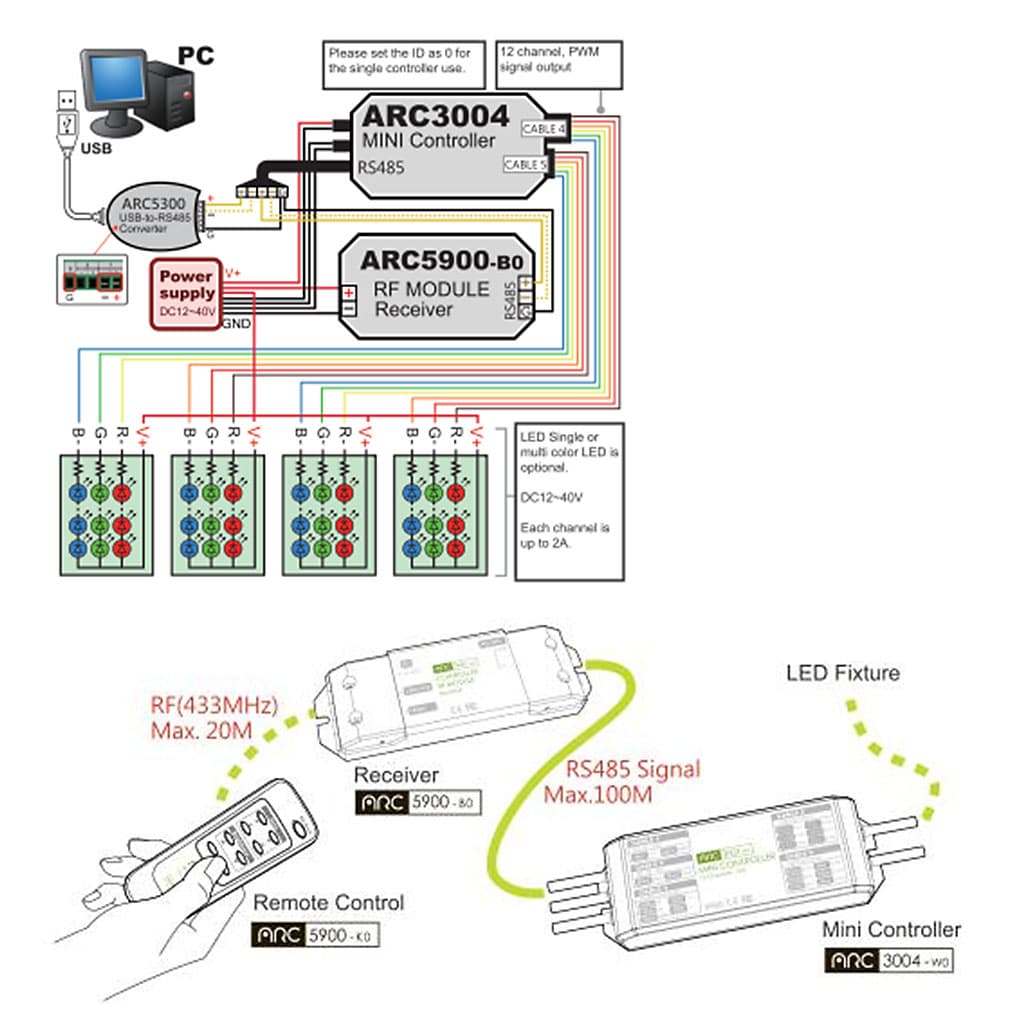

ARC Solid-State Lighting: 12-Channel LED Mini Controller with RF Module
ARC3004-W is the mini controller designed for the LED advertising and indoor commercial lighting which you can adjust it for the atmospheric and decorative lighting. Integrating the control and driving capabilities, it enables to connect the lighting fixture via PWM signal without a driver which…
Features:
• It is suitable for indoor commercial and outdoor advertising signage lighting.
• 12-Channel LED controller is applied with the single or RGB full color LED lighting fixture.
• 8-program built-in and 8-program user-defined lighting effects to accommodate a variety of needs with optimized software.
• The color changing is smooth and fluent with 4096 grey scales.
• 2A driving capacity is for each channel and up to 24A.
• It allows connecting up to 32 sets of ARC3004-W and the driving channel is up to 384 channels.
• Support RF remote control module (ARC5900 Series?for changing the light show, speed and brightness.
• IP66 rated waterproof for outdoor applications.
Application:
• Commercial shop lighting
• Outdoor advertising signage
• LED ambient atmosphere & decorative lighting
Specification:
Items | Specification |
Supply Voltage | DC 12-40V (type1) ? DC25-48V(type2) |
Channel | 12 channels |
Output signal | LED 1-12 channel, PWM |
Maximum Driving Current | Per channel maximum 2A Total maximum 24A |
PWM Frequency | Standard Mode:1KHZ H igh Power Mode:180HZ |
Memory | 1M byte |
Adjustable Gray Scale | Built-in Gamma correction technology, select 256 gray scale from 12bits 4096 gray scale |
Lighting Effect | 8 Built-in and 8user-defined (the latter should be edited through Lightshow software and download by RS485 interface. |
Synchronization | 32 sets (RS485) |
Operation Temperature | -20 ° C -60 ° C |
Operation Humidity | 20% -90% RH |
Waterproof | IP66 |
Dimension | (L)141mm x (W)50mm x (H)29mm |
Certification | CE/FCC |
ARC3004-W is simple to adjust the program, speed, and brightness in any occasions to accommodate entertaining with the unique software and RF module. Furthermore, color 4096 grey scales with function of gamma correction technology make the color more clear and smooth. In order to meet the requirements for convenience and efficiency of user’s operation, it allows memorizing the selected program until reboot. It is also adjustable of 16-program lighting effect, 16-segment of the speed and 8-set of the brightness in accordance with the RF module. With the multi functions of ARC3004-W, it can be applied in various applications, such as LED advertising signage, commercial shop and indoor decorative lighting.
For additional information please visit the ARC-Website.
About ARC Solid-State Lighting:
ARC Solid-State Lighting was founded in Jan, 2007 in Taipei, Taiwan. We focus on the LED lighting controller and opto-electronic design and development to provide appropriate solutions for LED Lighting applications. Among the wide range of opto-electronic devices, ARC SSL chooses LED lighting applications as the axis for technology development and explores the advanced software and control system technology to outperform the advantages of LED lighting devices.ARC was certified by ISO 9001:2000 in Oct, 2008.
